UR-1A117SML-SERIES

Extreme Weather Resistance – IP69K:
Rugged construction and a tight seal protect against high-pressure water, mud, and dust, ideal for mining or heavy construction areas.

LED WARNING BEACON

UR-1A117SML-SERIES

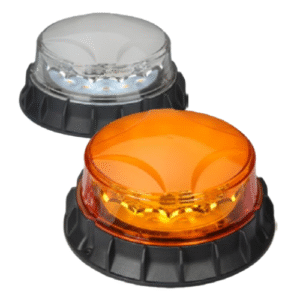

The UR-1A117SML-Series is a high-intensity LED warning beacon designed to provide a strong visual signal to industrial vehicles, heavy equipment, and work areas. Equipped with 30 amber SMD LEDs, this light produces a bright, sharp beam of light to enhance safety in high-risk work environments.

With up to 10 customizable flash patterns and ECE R65 certification, this light meets international standards for vehicle and industrial equipment warning lights. It is suitable for mining, construction, and work area safety applications.

The UR-1A117SML-Series is a high-intensity LED warning beacon designed to provide a strong visual signal to industrial vehicles, heavy equipment, and work areas. Equipped with 30 amber SMD LEDs, this light produces a bright, sharp beam of light to enhance safety in high-risk work environments.

With up to 10 customizable flash patterns and ECE R65 certification, this light meets international standards for vehicle and industrial equipment warning lights. It is suitable for mining, construction, and work area safety applications.

  • Ultra-Bright Warning Light:
    Uses 30 high-quality SMD LEDs that produce a strong, stable amber light, clearly visible even in daylight.
  • 10 Variable Flashing Patterns:
    Adjustable to your needs—from rapid flash, rotation, to burst mode, for a variety of safety scenarios.
  • Extreme Weather Resistance – IP69K:
    Rugged construction and a tight seal protect against high-pressure water, mud, and dust, ideal for mining or heavy construction areas.
  • Premium Material & UV Protection:
    Using a UV-resistant PC lens from leading brands like Covestro or Teijin, it is resistant to sunlight and resists yellowing.
  • Connection & Installation Flexibility:
    Can be connected via a DT/AMP cable, or with a car charger option for highly mobile use.
  • Long Life & Energy Efficient:
    With a lifespan of over 30,000 hours, this light is energy-efficient and requires minimal maintenance, suitable for long-term use.
  • Flash Patterns : Up to 10 patterns
  • Homologation : ECE R65
  • LED Type : 30 SMD LEDs
  • Light Color : Amber
  • EMC Grade : CISPR 25 Class 3
  • Operating Voltage : 10V–30V DC
  • Connector : DT/AMP/Cable (optional: car charger)

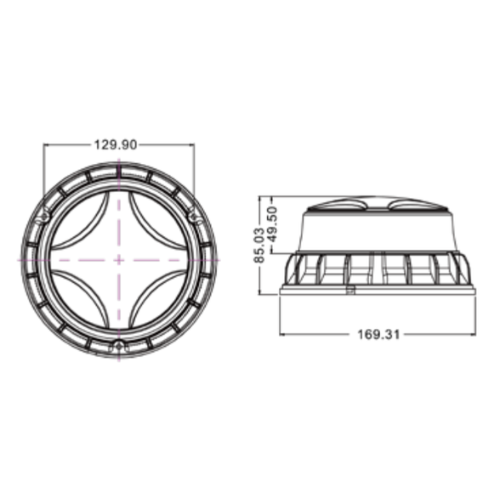

  • Size : Ø109 × 83 mm
  • Lens : Anti-UV PC (COEVSTRO 2407 or Teijin)
  • IP Rating : IP69K – high-pressure water and dust resistant
  • Mounting Method : Permanent mount
  • Operating Temperature : -40°C to +50°C
  • LED Lifespan : >30,000 hours
