UR-1B001HL
7 Functions in 1 unit : Low Beam, Corner Low Beam, High Beam, Turn Light, Side DRL, Parking, and De-icing.
LED Headlight Combination 7 in 1
UR-1B001HL

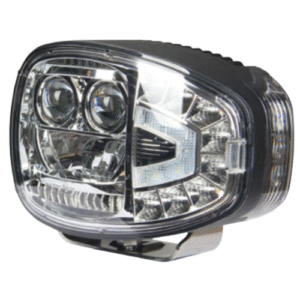

UR-1B001HL is a 7-in-1 multifunction combination headlamp designed to provide optimal lighting, energy efficiency, and durability in extreme work environments. Using OSRAM OEM Vehicle-Level LEDs, this lamp produces bright, clear 5700K white light for maximum visibility, and amber light for signaling.
Equipped with 60W automatic de-icing technology, the UR-1B001HL prevents ice and condensation buildup on the lens surface, ensuring stable performance in all weather conditions. With an aluminum alloy housing, a Covestro UV-resistant polycarbonate lens, and a corrosion-resistant 304 stainless steel bracket, this lamp meets IP66 and IP6K9K standards and is vibration-resistant up to 15.3 Grms, making it highly durable for use in mining, heavy equipment, and off-road vehicles. vehicle safety and performance standards.
UR-1B001HL is a 7-in-1 multifunction combination headlamp designed to provide optimal lighting, energy efficiency, and durability in extreme work environments. Using OSRAM OEM Vehicle-Level LEDs, this lamp produces bright, clear 5700K white light for maximum visibility, and amber light for signaling.
Equipped with 60W automatic de-icing technology, the UR-1B001HL prevents ice and condensation buildup on the lens surface, ensuring stable performance in all weather conditions.
With an aluminum alloy housing, a Covestro UV-resistant polycarbonate lens, and a corrosion-resistant 304 stainless steel bracket, this lamp meets IP66 and IP6K9K standards and is vibration-resistant up to 15.3 Grms, making it highly durable for use in mining, heavy equipment, and off-road vehicles.
Complete DOT/SAE/ECE R112/R6/R7/R10 certifications ensure this product meets international vehicle safety and performance standards.
- Functions : Low Beam, Corner Low Beam, High Beam, Turn Light, Side DI, Parking, De-icing ECE R112, R6, R7, R10
- Homologations : DOT FMVSS108/SAE J914/SAE J588/SAE J222
LED Type : OSRAM OEM Vehicle Level LEDs
- Emitting color : White and Amber (Turn)
- Color Temp : 5700K (White)
Energy Consumption (tested) : Low Beam 35W; High Beam 21W; Corner Low Beam: 11W Turn Light & Side DI: 2.7W; Parking: 0.5W
Current Draw @ 12V (tested) : Low Beam 2..91A; High Beam 1.75A; Corner Low Beam: 0.92A Turn Light & Side DI: 0.225A;

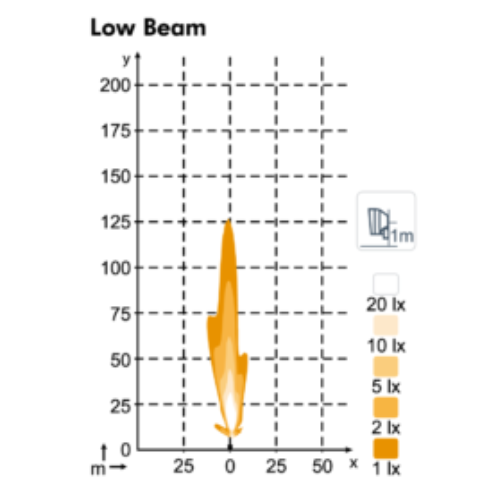

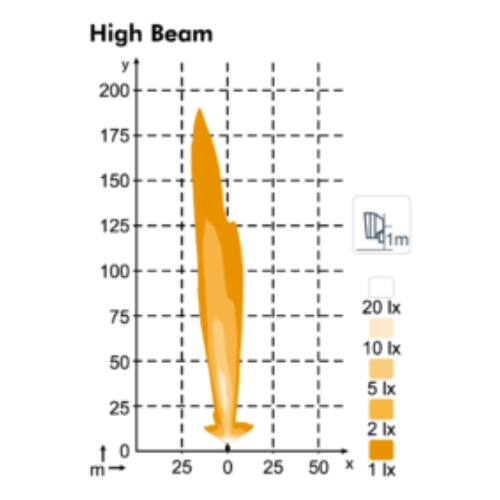

- Effective Lumen : Parking Light: 0.04A Low Beam: 1040LM (OSRAM LED) High Beam: 1160LM (5530 LED) Corner Low Beam: 560LM; Turn Light & Side DI: 210LM; (Amber) Parking 24LM;
- De-Icing Tech : URSA’s patented Replaceable Modular
- De-icing Power : 60W
- Control Mode : Automatic temp. sensor switch
- EMC Grade : CISPR 25 Class 5
- Operating Voltage : 10~30VDC
- Connector : 6 pin DT connector

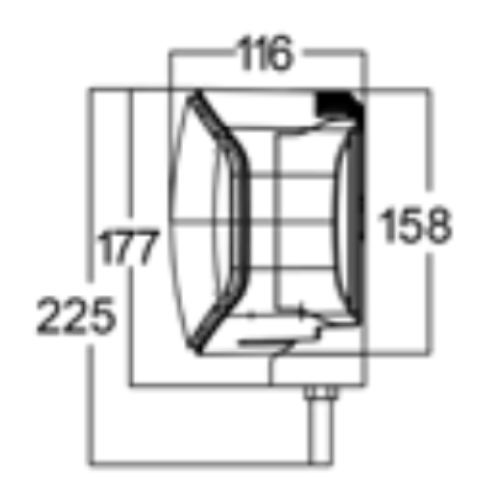

- Size : 230X158X116mm
- Housing Material : Aluminium Alloy
- Lens Material : Anti-UV PC
- Lens Process : Surface Hardened
- PC Brand : COVESTRO 2407
- Bracket Material : Tough 304 Stainless Steel
- Anti-Corrosion : ISO 9227 240H
- Vibration Level : 15.3Grms
- IP Rate : IP66, IP6K9K
- Work Temp : -40~+50°C
- 7 functions in one unit : Low Beam, Corner Low Beam, High Beam, Turn Light, Side DRL, Parking, and De-icing.
- Automatic de-icing technology with an internal temperature sensor.
- Efficient power consumption : Low Beam 35W, High Beam 21W.
- High light output : up to 1160 lm (High Beam) with high-quality OSRAM LEDs.
- Maximum protection : IP66 & IP6K9K, water and dust resistant to high pressure.
- Premium construction : aluminum alloy, 304 stainless steel bracket, and UV-resistant Covestro lens.
- 6-pin DT connector for quick installation and reliable connection.
- Lifespan over 30,000 hours.
- Dump Truck, Mining and logging vehicles.
- Construction and heavy industrial vehicles.
- Commercial trucks and off-road vehicles.
