UR-1B002CMB
8 complete lighting functions :
Low Beam, High Beam, Corner Low Beam, Auxiliary Low Beam, Turn Light, Side DRL, Parking Light, and De-icing.
LED Headlight
Combination 8 in 1
UR-1B002CMB

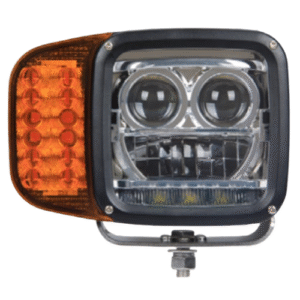

URSA UR-1B002CMB is an 8-in-1 LED headlight, specifically designed to provide maximum illumination, high visibility, and extreme durability in demanding work environments.
Using OSRAM OEM Vehicle-Level LEDs, this headlight produces high-efficiency 5700K natural white light, along with amber light for turn signals and vehicle side identification.
It features 20W heated glass de-icing technology, which maintains the lens temperature at 45°C to keep it ice- and fog-free in cold conditions.
URSA UR-1B002CMB is an 8-in-1 LED headlight, specifically designed to provide maximum illumination, high visibility, and extreme durability in demanding work environments.
Using OSRAM OEM Vehicle-Level LEDs, this headlight produces high-efficiency 5700K natural white light, along with amber light for turn signals and vehicle side identification.
It features 20W heated glass de-icing technology, which maintains the lens temperature at 45°C to keep it ice- and fog-free in cold conditions.
The robust aluminum alloy housing construction and tempered glass lens ensure resistance to vibration, impact, and extreme temperatures. This headlight also boasts IP6K9K protection, high-pressure water and dust resistance, and is compatible with the DT 6-pin connector for quick and safe installation.
With ECE R112, R6, R7, R10, DOT J1383, SAE J914, J588, J582, and J222 certifications, the UR-1B002CMB meets international standards for automotive performance and safety.
Functions:
Low Beam, High Beam, Corner Low Beam, Auxiliary Low Beam, Turn Light, Side DRL, Parking, De-icing
Homologations:
ECE R112, R6, R7, R10, DOT J1383/J914/J588, SAE J582/J222
Optical & Electric:
-
LED Type: OSRAM OEM Vehicle Level LEDs
-
Color: White & Amber (Turn)
-
Color Temp: 5700K
-
Raw Lumen: High 5750LM / Low 2800LM
-
Effective Lumen: High 1196LM / Low 1008LM
-
Power: High 24.5W / Low 35.5W
-
Voltage: 10–30VDC
-
Current @12V: High 2.04A / Low 2.95A
-
Connector: 6-pin DT
De-Icing System:
Heating Glass, 20W, Sensor Control, Constant 45°C Lens
Mechanical:

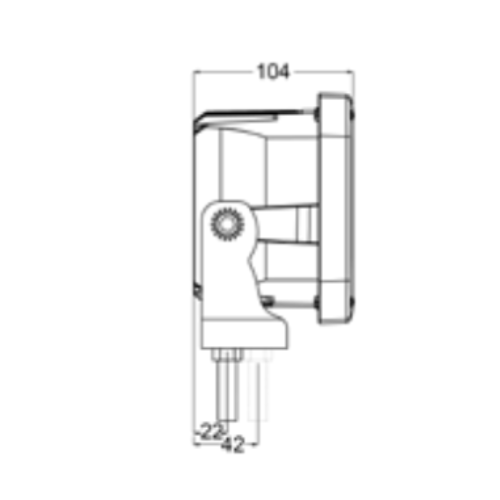

212×163.5×104mm, Aluminium Alloy Housing, Tempered Glass Lens, IP6K9K, -40~+50°C, >30,000H Lifetime
- 8 complete lighting functions :
Low Beam, High Beam, Corner Low Beam, Auxiliary Low Beam, Turn Light, Side DRL, Parking Light, and De-icing. - High Output :
- High Beam: 5750 lm (Raw) / 1196 lm (Effective)
- Low Beam: 2800 lm (Raw) / 1008 lm (Effective)
- Smart De-icing technology with automatic temperature sensor (constant 45°C).
- Premium Material : Aluminum alloy housing and impact-resistant tempered glass lens.
- High Efficiency : Low power consumption with maximum light performance.
- 6-pin DT connector for plug-and-play installation.
- Extreme Protection : IP6K9K, vibration resistant, and a lifespan of over 30,000 hours.
- Global Certification : DOT / SAE / ECE, in accordance with international automotive standards.
- Heavy mining equipment (dump trucks, excavators, bulldozers, graders)
- Construction and logging vehicles
- Commercial trucks, off-road vehicles, and military vehicles
- Outdoor work areas in dark, damp, or snowy conditions
URSA UR-1B002CMB is an 8-in-1 LED headlight, specifically designed to provide maximum illumination, high visibility, and extreme durability in demanding work environments.
Using OSRAM OEM Vehicle-Level LEDs, this headlight produces high-efficiency 5700K natural white light, along with amber light for turn signals and vehicle side identification.
It features 20W heated glass de-icing technology, which maintains the lens temperature at 45°C to keep it ice- and fog-free in cold conditions.
The robust aluminum alloy housing construction and tempered glass lens ensure resistance to vibration, impact, and extreme temperatures. This headlight also boasts IP6K9K protection, high-pressure water and dust resistance, and is compatible with the DT 6-pin connector for quick and safe installation.
With ECE R112, R6, R7, R10, DOT J1383, SAE J914, J588, J582, and J222 certifications, the UR-1B002CMB meets international standards for automotive performance and safety.
Functions:
Low Beam, High Beam, Corner Low Beam, Auxiliary Low Beam, Turn Light, Side DRL, Parking, De-icing
Homologations:
ECE R112, R6, R7, R10, DOT J1383/J914/J588, SAE J582/J222
Optical & Electric:
-
LED Type: OSRAM OEM Vehicle Level LEDs
-
Color: White & Amber (Turn)
-
Color Temp: 5700K
-
Raw Lumen: High 5750LM / Low 2800LM
-
Effective Lumen: High 1196LM / Low 1008LM
-
Power: High 24.5W / Low 35.5W
-
Voltage: 10–30VDC
-
Current @12V: High 2.04A / Low 2.95A
-
Connector: 6-pin DT
De-Icing System:
Heating Glass, 20W, Sensor Control, Constant 45°C Lens
Mechanical:
212×163.5×104mm, Aluminium Alloy Housing, Tempered Glass Lens, IP6K9K, -40~+50°C, >30,000H Lifetime
- 8 complete lighting functions :
Low Beam, High Beam, Corner Low Beam, Auxiliary Low Beam, Turn Light, Side DRL, Parking Light, and De-icing. - High Output :
- High Beam: 5750 lm (Raw) / 1196 lm (Effective)
- Low Beam: 2800 lm (Raw) / 1008 lm (Effective)
- Smart De-icing technology with automatic temperature sensor (constant 45°C).
- Premium Material : Aluminum alloy housing and impact-resistant tempered glass lens.
- High Efficiency : Low power consumption with maximum light performance.
- 6-pin DT connector for plug-and-play installation.
- Extreme Protection : IP6K9K, vibration resistant, and a lifespan of over 30,000 hours.
- Global Certification : DOT / SAE / ECE, in accordance with international automotive standards.
- Heavy mining equipment (dump trucks, excavators, bulldozers, graders)
- Construction and logging vehicles
- Commercial trucks, off-road vehicles, and military vehicles
- Outdoor work areas in dark, damp, or snowy conditions
