UR-1C019CWL

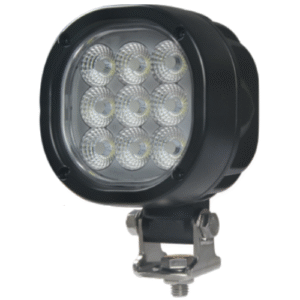

UR-1C019CWL is a robust and high-output LED work light designed for wide-area illumination.
CLASSIC LED WORK LED
UR-1C019CWL
UR-1C019CWL is a robust and high-output LED work light designed for wide-area illumination. Built with advanced LED technology and a durable housing, it provides exceptional flood lighting performance suitable for heavy machinery, mining operations, construction sites, and industrial environments.
UR-1C019CWL features 9 high-efficiency 10W LEDs that deliver a powerful wide beam pattern, offering excellent coverage for close- to mid-range working areas. Its anti-UV polycarbonate lens, heavy-duty stainless steel bracket, and IP67/IP69K waterproof rating ensure maximum durability and reliability in challenging outdoor conditions. This model is engineered to provide consistent brightness, long lifespan, and stable performance on both 12V and 24V systems.
UR-1C019CWL is a robust and high-output LED work light designed for wide-area illumination. Built with advanced LED technology and a durable housing, it provides exceptional flood lighting performance suitable for heavy machinery, mining operations, construction sites, and industrial environments.
UR-1C019CWL features 9 high-efficiency 10W LEDs that deliver a powerful wide beam pattern, offering excellent coverage for close- to mid-range working areas. Its anti-UV polycarbonate lens, heavy-duty stainless steel bracket, and IP67/IP69K waterproof rating ensure maximum durability and reliability in challenging outdoor conditions. This model is engineered to provide consistent brightness, long lifespan, and stable performance on both 12V and 24V systems.
Advantages

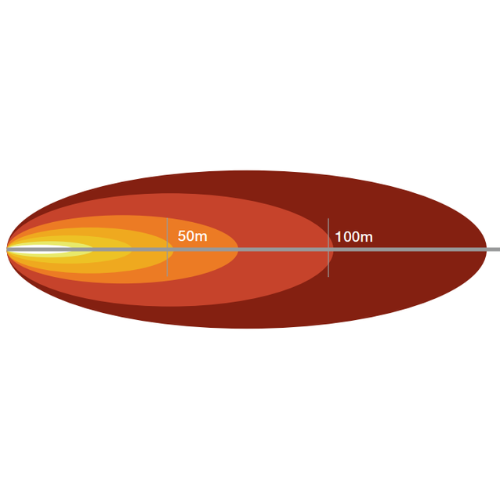

Wide Flood Beam Coverage
Ideal for illuminating large working areas with uniform brightness.High-Intensity 60W Output
Delivers strong and stable illumination for improved safety and visibility.Built for Tough Environments
Aluminum housing ensures excellent heat dissipation and shock resistance.Waterproof & Dustproof (IP67 & IP69K)
Fully resistant to immersion, water jets, dust, and high-pressure washing.Long Operating Life
Lifespan of over 30,000 hours with minimal maintenance.Stable at 12V & 24V Systems
Reliable current draw ensures compatibility with various heavy equipment.
- Function : Flood
- LED Type : 9 pcs 10W LEDs
- Current Draw : 5.00A@12V; 2.50A@24V
- Power : 60W

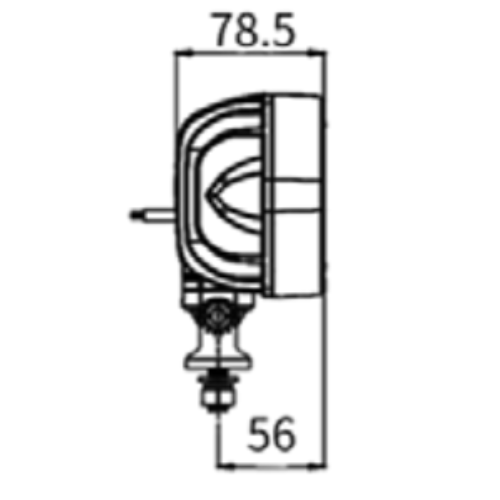

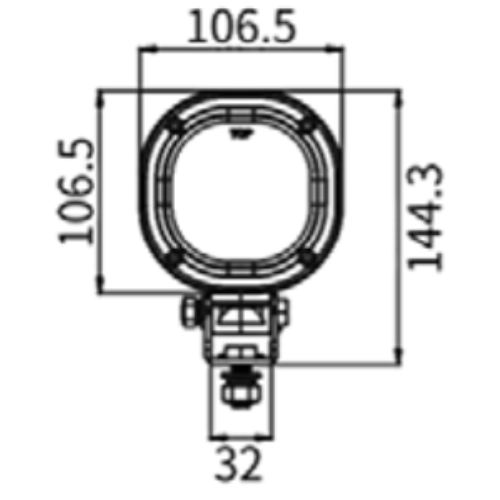

- Size : 106.5 X 144.3X 78.5mm
- Housing Material : Aluminum
- Lens Material : Anti-UV PC
- Bracket : Stainless Steel
- IP Rate : IP67,IP6K9K
- Work Temp : -40~+50°C
- Life Time : >30,000h
Main Features
9 × 10W high-performance LEDs
Wide flood beam for expanded light coverage
Anti-UV PC lens for long-lasting clarity
Heavy-duty stainless steel mounting bracket
EMC Class 5 compliance to prevent electrical interference
Vibration and shock resistant
Aluminum housing for enhanced durability
Operates in extreme temperatures (–40°C to +50°C)
Applications
The UR-1C019CWL is suitable for wide-area illumination on various equipment and industrial environments, including:
Construction Machinery
Excavators, wheel loaders, dozers, compactors, and cranes.Mining Applications
Haul trucks, loaders, drilling machines, and underground equipment.Agricultural & Forestry Equipment
Tractors, harvesters, log handling machines, and utility vehicles.Industrial & Commercial Use
Warehouses, workshops, service vehicles, and outdoor work areas.Off-Road & Outdoor Activities
4×4 vehicles, ATVs, and general field illumination.
