Product List

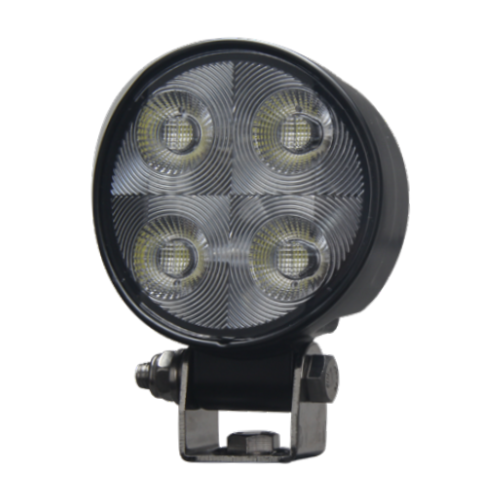

UR-1C024RSS
Compact & Rugged Design : Small yet powerful, easy to install on vehicles or heavy equipment with limited space.
HEAVY - DUTY LED SIDE SHOOTER SERIES
UR-1C024RSS
UR-1C024RSS is a compact lighting solution with exceptional performance. Designed with 4 10W LEDs that produce a wide 180° flood light, this light provides maximum visibility in the work area, especially in dark and dusty conditions.
With a corrosion-resistant aluminum body and stainless steel bracket, this light is ideal for long-term use in harsh environments such as mining, construction, and industrial areas.
UR-1C024RSS is a compact lighting solution with exceptional performance. Designed with 4 10W LEDs that produce a wide 180° flood light, this light provides maximum visibility in the work area, especially in dark and dusty conditions.
With a corrosion-resistant aluminum body and stainless steel bracket, this light is ideal for long-term use in harsh environments such as mining, construction, and industrial areas.
- 180° Wide Beam: Provides wide and even light distribution, ideal for work areas requiring high visibility.
- Compact & Rugged Design: Small yet powerful, easy to install on vehicles or heavy equipment with limited space.
- Extreme Weather Resistance: IP67 & IP69K protection ensures optimal performance even when exposed to high-pressure water or heavy dust.
- Premium Material: Aluminum housing and Anti-UV PC lens maintain brightness and long-term durability.
- High Energy Efficiency: Low power consumption with maximum lighting output, suitable for mining or industrial vehicle electrical systems.
- Function : Flood
- LED Type : 4 pcs × 10W LEDs
- Current Draw : 2.5A @12V / 1.25A @24V
- Power : 30W

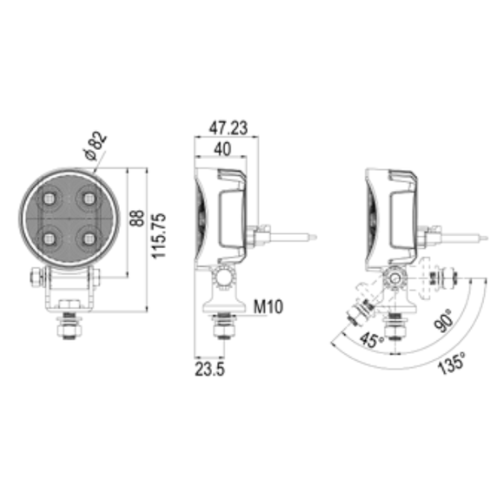

- Size : 82 × 115.75 × 50.53 mm
- Housing Material : Aluminum
- Lens Material : Anti-UV PC
- Bracket : Stainless Steel
- IP Rate : IP67, IP69K
- Work Temperature : -40°C ~ +50°C
- Life Time : >30,000 hours
- Mining vehicles and heavy equipment (excavators, dump trucks, loaders).
- Construction and agricultural vehicles.
- Outdoor work areas, workshops, or nighttime mining sites.
- Additional lights on the sides of the vehicle to enhance operational safety.
