UR-1C025RSS
Energy Efficiency & Stable Performance : 40W power delivers maximum light output without sacrificing electrical efficiency.
HEAVY - DUTY LED SIDE SHOOTER SERIES
UR-1C025RSS

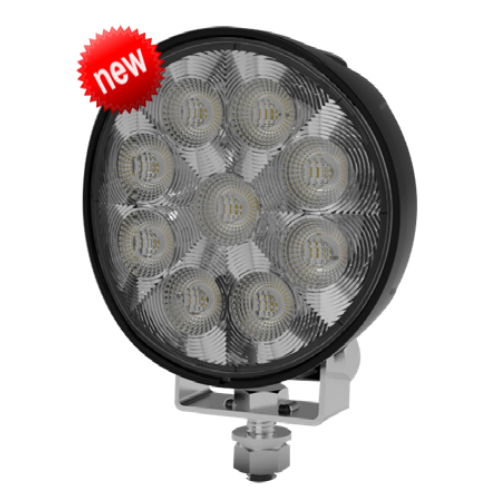

UR-1C025RSS is a high-performance Side Shooter lamp with a 4-inch circular design that produces a flood beam of up to 180°. Using 9 high-efficiency 10W LEDs, this lamp delivers even and powerful light intensity to support visibility in demanding work areas.
With an aluminum alloy construction and stainless steel bracket, this lamp is designed for maximum resistance to vibration, extreme weather, and high pressure—making it an ideal solution for the mining, construction, and heavy industry sectors.
UR-1C025RSS is a high-performance Side Shooter lamp with a 4-inch circular design that produces a flood beam of up to 180°. Using 9 high-efficiency 10W LEDs, this lamp delivers even and powerful light intensity to support visibility in demanding work areas.
With an aluminum alloy construction and stainless steel bracket, this lamp is designed for maximum resistance to vibration, extreme weather, and high pressure—making it an ideal solution for the mining, construction, and heavy industry sectors.
- 180° Super Wide Lighting Angle: Provides a wide light spread to the front and sides for a brighter and safer work area.
- Premium Construction: Aluminum alloy material and stainless steel brackets provide high resistance to vibration, rust, and harsh conditions.
- Weather & High Pressure Resistance: IP67 and IP69K certified, resistant to high-pressure water, dust, and mining mud.
- Energy Efficiency & Stable Performance: 40W power delivers maximum light output without sacrificing electrical efficiency.
- Long Lifespan: Over 30,000 hours of use, reducing downtime and maintenance costs.
- Function : Flood Beam
- LED Type : 9pcs 10W LEDs
- Current Draw : 3.33A@12V, 1.66A@24V
- Power : 40W

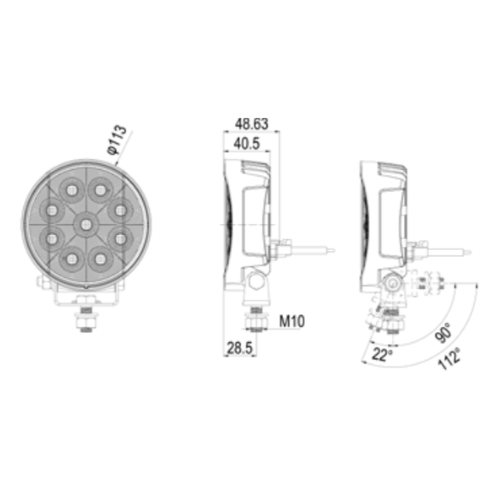

- Size : φ113 X 48.46mm
- Housing Material : Aluminum Alloy
- Lens Material : Anti-UV PC
- Bracket : Stainless Steel
- IP Rate : IP67, IP6K9K
- Work Temp : -40~+50°C
- Life Time : >30,000h
- Mining vehicles and heavy equipment (excavators, dump trucks, loaders).
- Construction and agricultural vehicles.
- Outdoor work areas, workshops, or nighttime mining sites.
- Additional lights on the sides of the vehicle to enhance operational safety.
