UR-1C029WL-FRK-BL

Its compact design and resistance to vibration, dust, and water (IP67) make it ideal for use in various heavy-duty working conditions.

Heavy - Duty

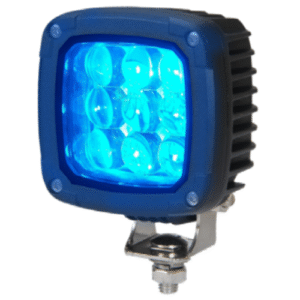

LED Forklift Light

UR-1C029WL-FRK-BL

The UR-1C029WL-FRK-BL LED Forklift Light is a safety indicator light with a blue pencil beam that serves to mark the forklift’s movement area in the work environment.
With 9 high-quality SMD LEDs, this light produces focused and sharp lighting to improve the safety of operators and pedestrians in warehouses or factories.

Its compact design and resistance to vibration, dust, and water (IP67) make it ideal for use in various heavy-duty working conditions.
Equipped with an aluminum alloy housing and high-quality PC lens, this light provides maximum durability and a service life of over 30,000 hours.

The UR-1C029WL-FRK-BL LED Forklift Light is a safety indicator light with a blue pencil beam that serves to mark the forklift’s movement area in the work environment.
With 9 high-quality SMD LEDs, this light produces focused and sharp lighting to improve the safety of operators and pedestrians in warehouses or factories.

Its compact design and resistance to vibration, dust, and water (IP67) make it ideal for use in various heavy-duty working conditions.
Equipped with an aluminum alloy housing and high-quality PC lens, this light provides maximum durability and a service life of over 30,000 hours.

  • Improving Workplace Safety
    Displays a clear blue light line on the floor to warn pedestrians of forklift movement.
  • High Performance & Durability
    High-efficiency LEDs with a lifespan of >30,000 hours, minimal maintenance, and energy efficiency.
  • Resistant to Harsh Conditions
    With an aluminum housing and IP67 protection, this light is resistant to vibration, dust, water, and corrosion.
  • Easy Installation & Compatibility
    Suitable for various Toyota forklift models (7FB, 8FD Series, etc.) and easy to install in various vehicle positions.
  • International Standard Certification
    Meets ECE R10 and EN62471 safety and electromagnetic standards.
  • Functions : Work Light
    Beam Pattern : Blue Pencil Beam
    Homologations : : ECE R10, EN62471
  • LED Type : 9pcs SMD LED(s)
    Emitting Color :Blue
    Wavelength : 460-470nm
    Raw Lumen : 405 LM
    Effective Lumen : 218.23 LM
    Illumination : 1 Lux@140m
    Luminous Efficacy : 10.39LM/W
    Raw Power : 27W
    Effective Power : 21W
    Current Flow : 1.75A@12V,0.875A@24V
  • EMC Grade : ECE R10
    Operating Voltage : 10V~80V
    Connector : DT / AMP/ Cable (Optional)

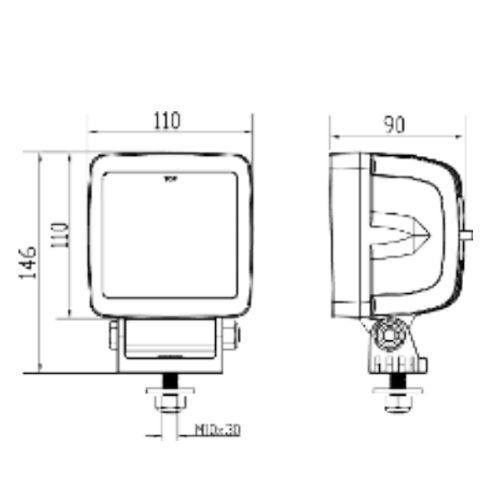

  • Size : 98.5X120X70.5mm
  • Housing Material : Aluminium Alloy
  • Optical Design :
    • Anti-UV Lens
    • +Tempered Glass
  •  PC Brand : COVESTRO 2407
  • Bracket : Stainless Steel
  • Anti-Corrosion : ISO 9227 240H
  • IP Rate : IP67, IP6K9K
  • Work Temp : -40~+50°C
frk dimension (3)
frk dimension (4)
frk dimension (2)
